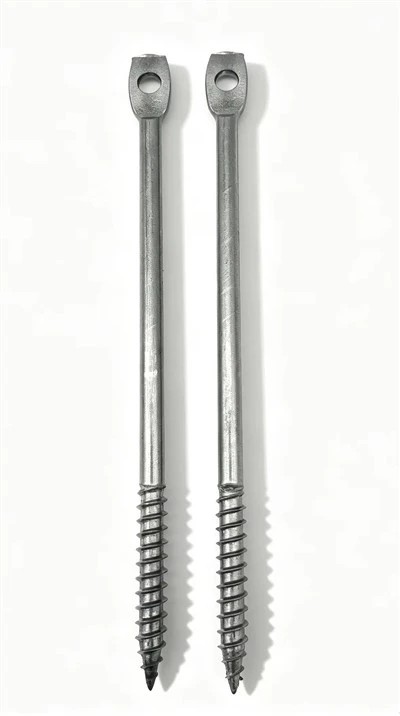

Key Details for Using Wood Screws in Ceiling Installation
Wood screws are commonly adopted for ceiling joist and wooden substrate fixing. Proper operation is essential to guarantee connection strength and construction safety. Below are critical specifications and practical notes for this type of ceiling wood screw.
1. Professional tools are required for installation
Matching professional tools must be prepared before construction. Suitable screwdriver bits or power drivers help keep the screw vertical during driving. This prevents screw head stripping, thread damage or wood cracking. Using unsuitable hand tools will increase installation difficulty and weaken the final fastening performance.
2. The thread length of this self tapping screw is 1.4173 inches
The effective thread length is designed at 1.4173 inches. When selecting installation positions, make sure enough wood substrate depth is reserved to fully engage the screw threads. Partial thread engagement will greatly reduce holding force and lead to hidden safety hazards for ceiling systems.
3. Maximum pass through for steel wire is 0.1968 inches
This wood screw can accommodate steel wire up to 0.1968 inches in diameter passing through. It is suitable for ceiling suspension wire fixing. Please confirm the actual steel wire diameter before installation. Do not use wires exceeding this size, which may jam the screw hole and damage the screw structure.
4. Maximum load capacity reaches 800 kg
The rated maximum bearing capacity of this ceiling wood screw is 800 kg under qualified installation and suitable wood base material. Note that this value is tested under standard conditions. Actual on-site load should reserve sufficient safety margin. Avoid long-term overload application.
Additional Reminders
• Check the wood substrate quality before installation. Rotten, cracked or thin wood cannot support the full rated load.
• Keep the screw perpendicular to the wood surface during driving to avoid thread bending.
• For multi-point suspended ceiling systems, distribute load evenly across multiple screws instead of concentrating weight on a single fastener.
FAQ
Q1: What tools are recommended to install these ceiling wood screws?
A: We recommend electric screwdrivers with matched bits. Professional installation tools help protect screw heads and maintain vertical entry into wood to avoid wood splitting.
Q2: Does the 1.4173 inch thread length include the screw head?
A: This thread length refers to the effective threaded section only, excluding the screw head. Please calculate the required substrate thickness based on the thread length for your ceiling project.
Q3: Can I use steel wire thicker than 0.1968 inches?
A: No. Wire over 0.1968 inches cannot pass through smoothly. Forcing oversized wire will crack the screw body and cause ceiling falling risks.
Q4: Is 800 kg the safe working load for one screw?
A: The 800 kg is the ultimate breaking load under standard laboratory test. You must apply a proper safety factor and cannot use the full value as continuous working load.
Q5: Can these wood screws be used outdoors for ceiling structures?
A: It depends on surface treatment. Galvanized or stainless steel versions are suitable for moist or outdoor environments. Ordinary carbon steel screws will rust quickly under outdoor humidity.
